Decimator DMON-6S
Advanced Video Broadcast Solutions

Decimator Design  Videolink is the Canadian Distributor for Decimator Design. Decimator Design is an Australian based company that is dedicated to the design and manufacture of advanced video broadcast solutions.
310

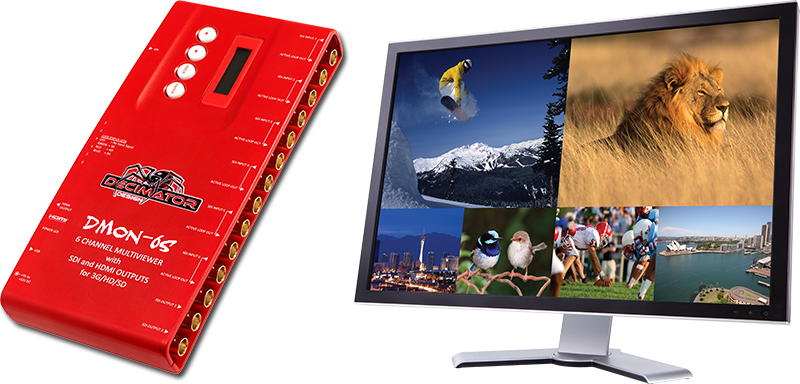

DMON-6S

1 to 6 Channel Multi-Viewer with SDI and HDMI outputs for 3G/HD/SD
and Custom Layouts

$595.00 US - Order Online or Contact Us -1-800-567-8481




• Low cost miniature (3G/HD/SD)-SDI 1 to 6 channel Multi-Viewer or 6 to 1 input multiplexer

• 6 x (3G/HD/SD)-SDI active loop copies of each input

• Custom Layouts with various standard layouts

• Fast switching between inputs using Full-Screen scaling

• Selectable output format in both Full-Screen and Multi-Viewer mode

• Low latency buffering for each input allowing non-synchronous inputs

• Linked (3G/HD/SD)-SDI and HDMI outputs

• 6 x (3G/HD/SD)-SDI inputs with auto detection (6 Formats supported in total)

• Each quadrant is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously

• Variable aspect ratios per quadrant

• Pass-Through mode allowing any of the 6 inputs to be selected for output

• In Pass-Through mode the selected input is passed through to both the (3G/HD/SD)-SDI and HDMI outputs

• The DMON-6S is a truly portable converter, that incorporates our new easy to use LCD and button control system. This gives you easy access to most of the amazing features without using complicated LED/button control, dip switches or having to carry around a computer to change a simple setting.

• This unit also includes:
- 32 GPI on 37-pin for Tallies and Remote Switching
- RS422/485 on 37-pin DSUB for Tallies
- USB port for control and firmware updates
- Heavy duty metal box
- Metal Thread Locking DC Power Socket
- Power Supply, HDMI Cable and USB Cable






$595.00 US - Order Online or Contact Us -1-800-567-8481
