Decimator MD-HX - Several converters for the price of one.

	Videolink is the Canadian Distributor for Decimator Design. Decimator Design is an Australian based company that is dedicated to the design and manufacture of advanced video broadcast solutions.

310

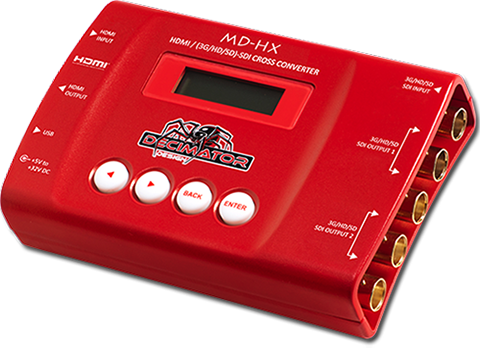

MD-HX

HDMI / SDI CROSS CONVERTER
with Scaling and Frame Rate Conversion

$295 US - Order Online or Contact Us -1-800-567-8481

• Combines several converters for the price of one
(e.g. SDI to HDMI, HDMI to SDI, Down Up Cross Converter, etc.)

• Robust Aluminium Case with easy to use LCD and button
control system.

• Features the following 14 modes:
1. SDI IN to HDMI and SDI OUT
2. SDI IN to SDI OUT and HDMI IN to HDMI OUT
3. SDI IN to SDI OUT and Scaled SDI IN to HDMI OUT
4. SDI IN to SDI OUT and Scaled HDMI IN to HDMI OUT
5. HDMI IN to SDI OUT and SDI IN to HDMI OUT
6. HDMI IN to HDMI and SDI OUT
7. HDMI IN to SDI OUT and Scaled SDI IN to HDMI OUT
8. HDMI IN to SDI OUT and Scaled HDMI IN to HDMI OUT
9. Scaled SDI IN to SDI OUT and SDI IN to HDMI OUT
10. Scaled SDI IN to SDI OUT and HDMI IN to HDMI OUT
11. Scaled SDI IN to HDMI and SDI OUT
12. Scaled HDMI IN to SDI OUT and SDI IN to HDMI OUT
13. Scaled HDMI IN to SDI OUT and HDMI IN to HDMI OUT
14. Scaled HDMI IN to HDMI and SDI OUT

• 4 x (3G/HD/SD)-SDI outputs, that allow it to be used as a
1 to 4 distribution amplifier. Output pair 1 can either be a
copy of the SDI input (default) or the same as pair 2.

• The audio pairs in the SDI and HDMI outputs can be rearranged as required.

• Includes the same Down Up Cross Converter from our multi-award
winning MD-DUCC, allowing either the HDMI or SDI input to be
scaled and/or frame rate converted to the required standard.

• This unit also includes:
- USB port for control and firmware updates
- New Metal Thread Locking DC Power Socket
- Power Supply, HDMI Cable and USB Cable
