DECIMATOR QUAD 4 Channel Multi-Viewer with SDI and Composite Outputs Videolink

	Videolink is the Canadian Distributor for Decimator Design. Decimator Design is an Australian based company that is dedicated to the design and manufacture of advanced video broadcast solutions.

310

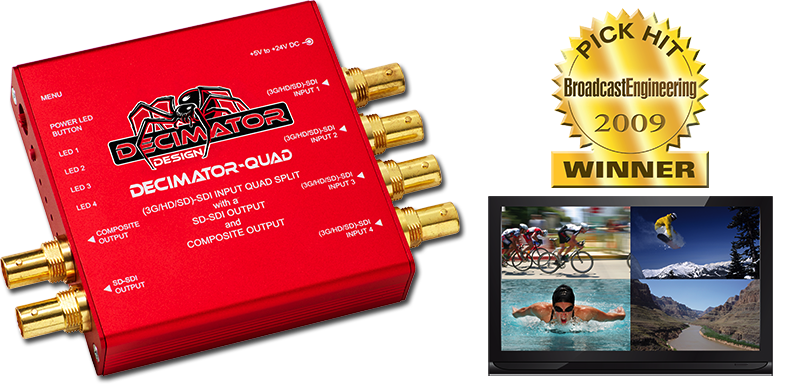

DECIMATOR-QUAD

MINIATURE (3G/HD/SD)-SDI QUAD SPLIT with
SD-SDI and Composite (PAL/NTSC) Outputs

$795.00 US - Order Online or Contact Us -1-800-567-8481

• Low cost miniature 3G/HD/SD-SDI 4 to 1 Quad Split or
• Down-converter with 4 to 1 input multiplexer.
• Your choice of either a NTSC or PAL output
• 4 x 3G/HD/SD-SDI inputs with auto detection
(26 Formats supported in total)
• All 4 inputs or a selected input displayed on a single
Composite and SD-SDI output
• Low latency buffering for each input allowing
non-synchronous inputs
• Each quadrant is independent of the others, allowing any
3G/HD/SD format of any frame rate to be displayed
simultaneously
• Variable aspect ratios per quadrant
• Size is 3.7”x3.7”x0.9” or (94mmx94mmx23mm)
