Production Bot Switch 8
Portable Live Broadcast Studio - Up to 8 Live Input/Output
Get the tools you need from Videolink!

Production Bot

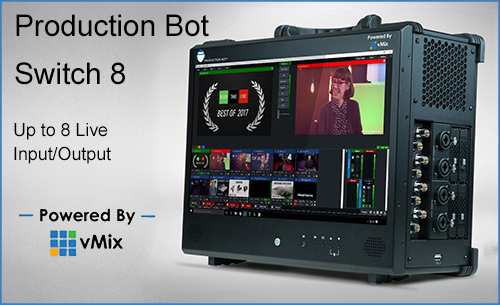

Production Bot Switch 8 - Powered by vMix


Features:
All-in-One Live Streaming Broadcast System

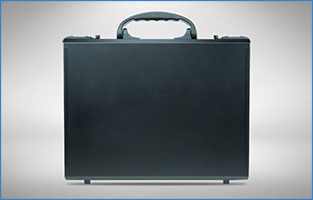

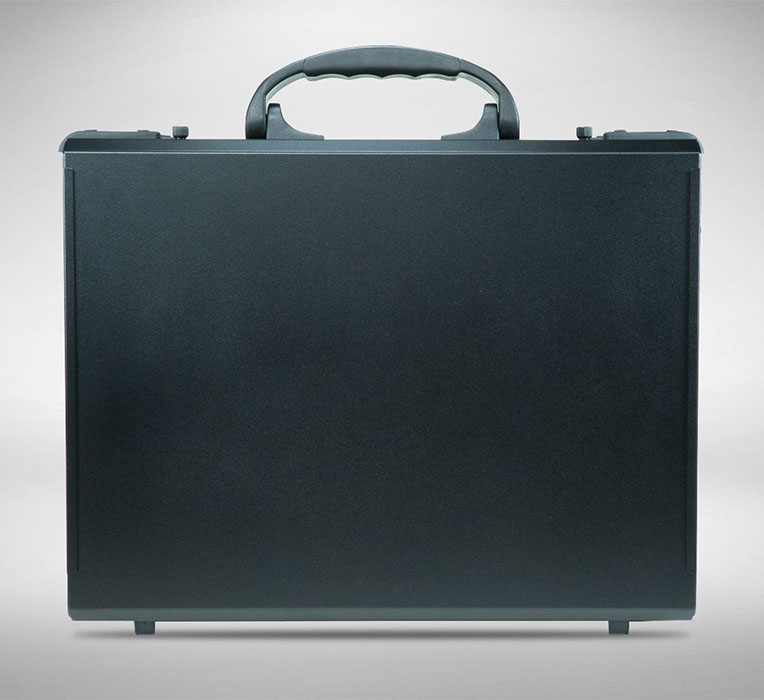

Built-in 17.3" Screen with Removable Cover
8x HD-SDI Inputs or Outputs and 1x 4K HDMI Output
SDI Supports 16-Channel Embedded Audio
SDI, HDMI, and DisplayPort Outputs
Up to 8-Channel ISO Recording
1TB SSD Removable Drive Included
Custom Graphics including Overlays, Chroma Key, and Transition Effects
Built-In Support for NDI

Production Bot Data
$12,795 US - Contact Us - 1-800-567-8481

Add The Production Bot Control Surface and get the Switch 8 Bundle
for $14,500 US you save $290 US




Click on thumbnails for larger pictures
Production Bot
Production Bot Production Bot Production Bot
Production Bot Production Bot

back to top
OVERVIEW

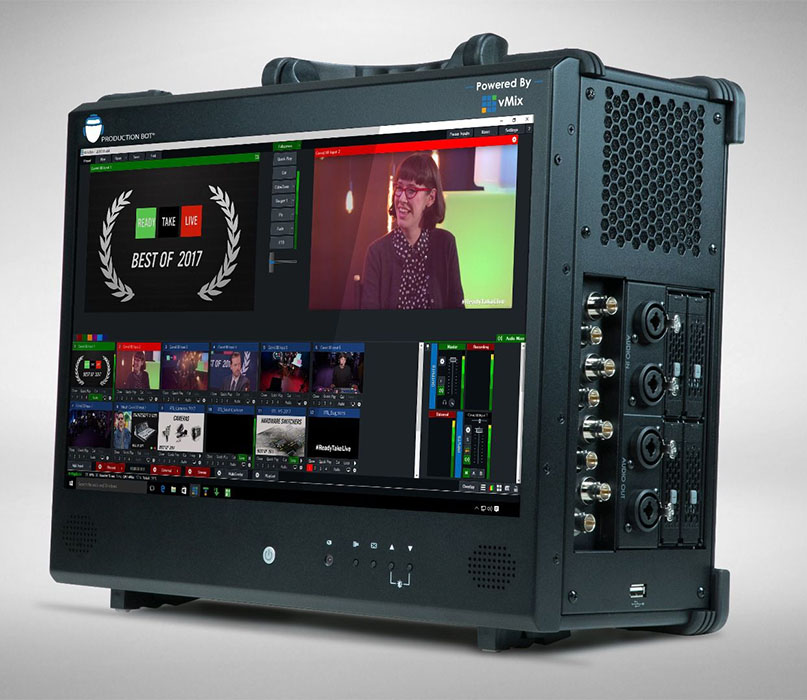

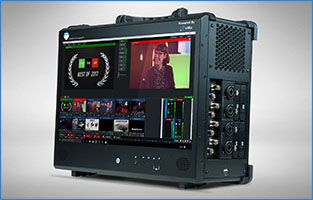

A switcher in a suitcase - the extremely portable Production Bot Switch 8 can be used as a live production studio, mobile editing station, or a DIT station. Cut cameras, run replays, integrate custom graphics, record program and camera isos, all in one unit. Can be used in any broadcast environment including 4K, varied frame rate, as well as external audio over XLR or 1⁄4”. Stream output live to many popular streaming platforms such as Facebook, Periscope, and Twitch. While the Production Bot is ideal for a small footprint, the screen real estate can be expanded and populated with vMix’s Multiview options. Kit includes the Production Bot Switch 8 with 17.3” built in screen, keyboard, mouse, and a rolling bag with telescoping handle - perfect for carry-on luggage.

HARDWARE FEATURES

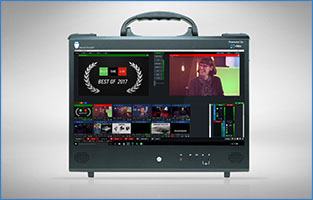

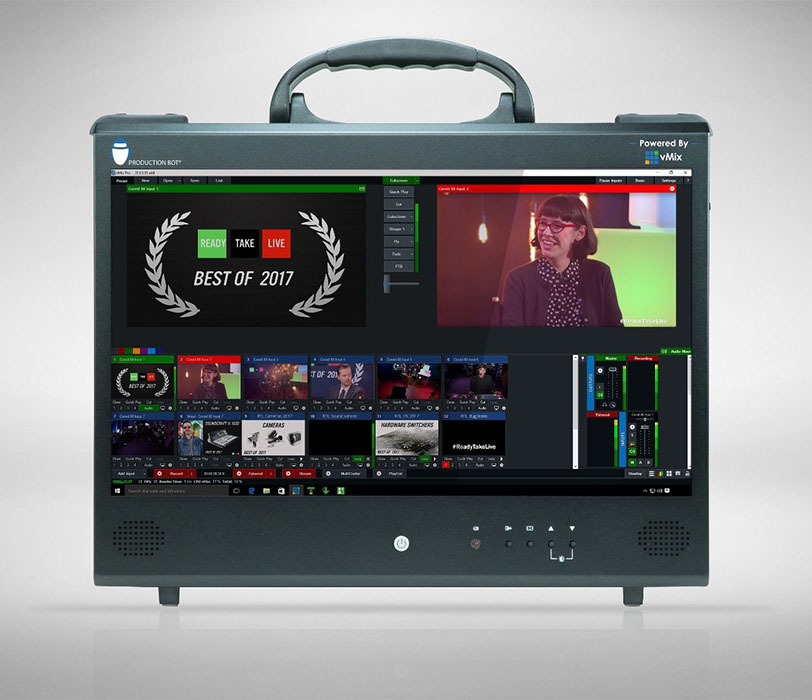

Built-in Display

The built-in display eliminates the need for external monitors but can still be expanded via DVI, HDMI or DisplayPort for multiviewer and other application access using external monitors.

I/O Cards:

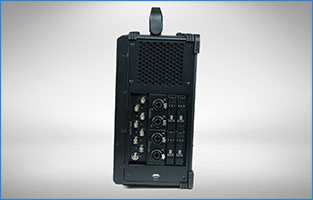

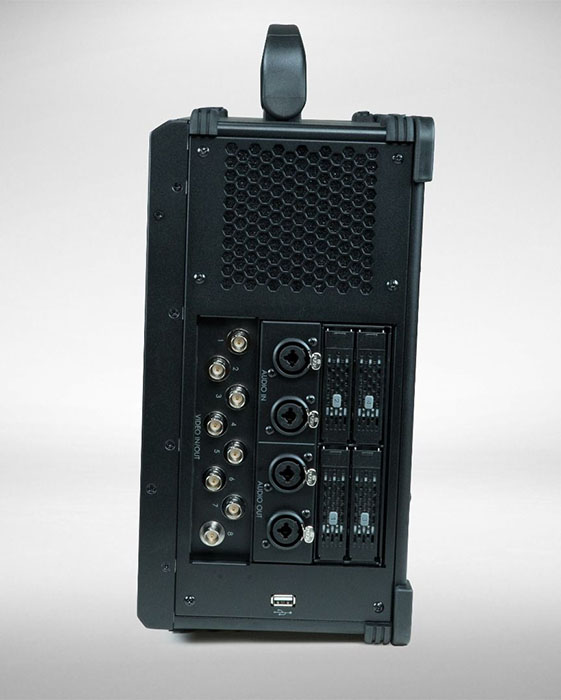

The Production Bot Switch 8 is equipped with an AJA capture card including eight HD-SDI inputs/outputs. You can also group four inputs together to provide two 4K inputs. When using the card in 4K mode, standard 1080/720 resolutions are unavailable. With up to two SDI outputs, producers can send multiple high-resolutions feeds. For example, a “dirty” version complete with overlays for broadcast and a “clean” version for recording and reuse later. Alternatively, one output can be dedicated to connect a broadcast-grade preview monitor to supplement the Production Bot’s built-in screen.

Removable SSD Slots for ISO Recording:

Production Bot Switch 8 includes a 1TB SSD drive pre-loaded in one of the four hot swap bays enabling ISO recording of any input. When finished, unplug the drives to move your footage to another machine for post-production or archiving.

vMix Call and NDI Capable:

vMix Call makes it easy to add remote guests to your live production. With only a web browser and webcam your guest can connect into your live show with HD video and high quality audio from anywhere in the world. Send and receive multiple channels of broadcast quality low-latency video over a gigabit ethernet network utilizing NDI with vMix.

Balanced XLR/TRS Audio I/O:

2 channels of audio over balanced XLR/TRS is allowed on top of the 16 channels of embedded SDI. The included XLR outputs can also allow a custom audio monitoring solution. Finally, if analog audio isn’t available, the Production Bot Switch 8 can interface with USB audio inputs and outputs, as well as Dante (separate software required).

COMPUTER

CPU: Intel Core i7-7700K
GPU: Model: NVIDIA GeForce GTX 1080
RAM: 8 GB
Memory: 32 GB DDR4
System Drive Primary: 500GB SSD + failover 500GB SSD
Media Storage: 2TB (2x 1TB SSDs)

DISPLAY

Size: 17.3"
Brightness: 400nit
Contrast Ratio: 600:1

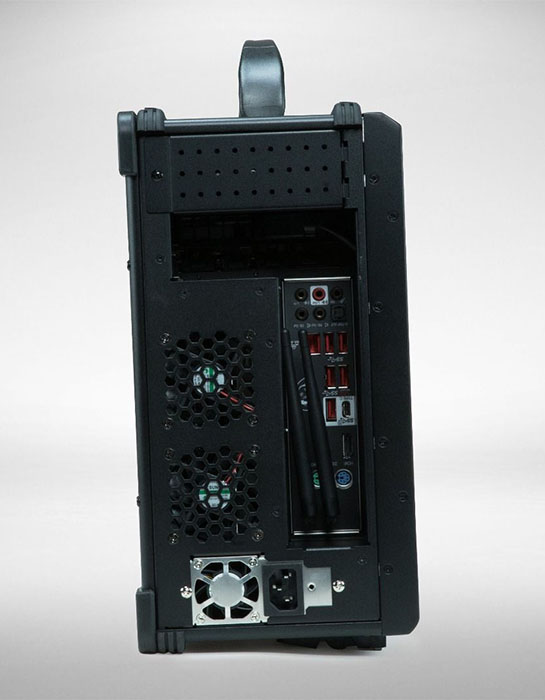

CONNECTIVITY

Inputs Video:
8x HD-SDI on BNC with up to 16-channel embedded audio (depends on IO selection)

Audio:
2x balanced line level XLR/TRS combo jack
1 3.5 mm unbalanced stereo

Outputs Video:
4x HD-SDI on BNC with up to 16-channel embedded audio (depends on IO selection)

GPU:
1 HDMI
1 DisplayPort

Audio:
2x balanced line level XLR/TRS combo jack
1 3.5 mm unbalanced stereo

SUPPORTED FORMATS

Supported Resolutions:

4096 x 2160p: 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B

3840 x 2160p: 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B

4K 29.97p (max 2 inputs)

1080p: 23.98, 24, 25, 29.97, 30

1080PsF: 23.98, 24, 25, 29.97, 30

1080i: 25, 29.97, 30

720p: 50, 50.94, 60

525i: 29.97 / 625i 25


GENERAL

Dimensions: 7” (D) x 14” (H) x 16.75” (W)
Weight: 22.5 lbs

PACKAGING INFO

Package Weight: 37 lbs
Box Dimensions: 21” (L) x 23” (W) x 19.5” (H)


IN THE BOX

Production Bot Switch 8 portable video production system

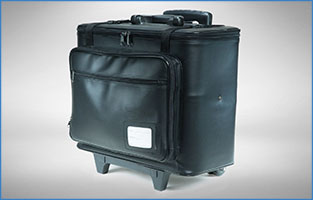

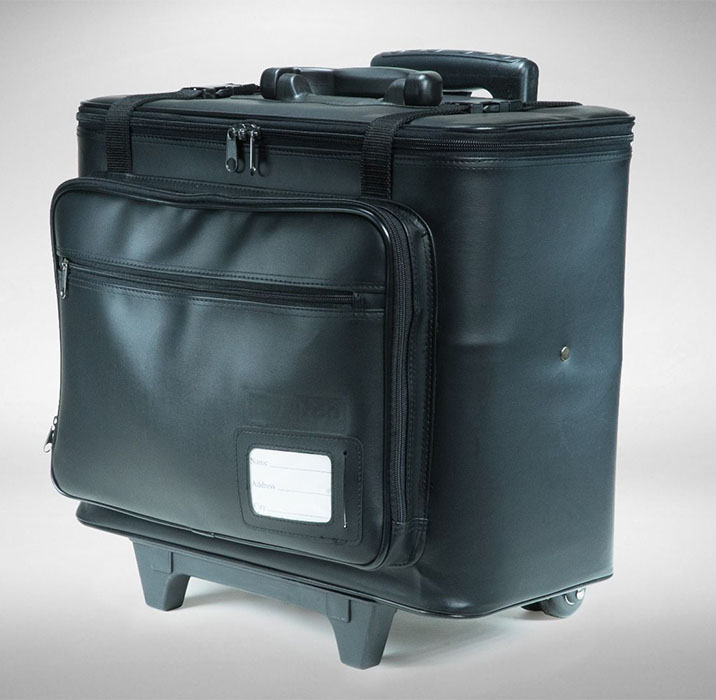

Rolling bag with telescoping handle
USB keyboard and mouse kit
USB Wifi adapter
Shuttle Replay Controller
Production Bot mouse pad
Windows 10 Pro 64-bit DVD
AC power cord
Quick Start Guide
Hardware for drive cage
Limited 1 Year Warranty




$12,795 US - Contact Us - 1-800-567-8481



Add The Production Bot Control Surface and get the Switch 8 Bundle
for $14,500 US you save $290 US

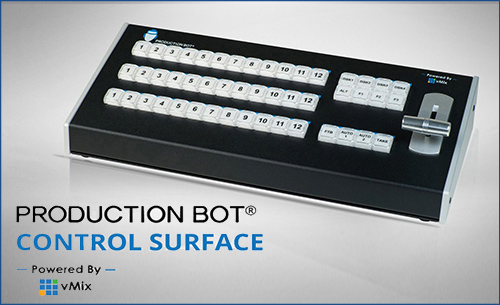

Production Bot Contraol Surface Production Bot Control Surface

Features:
USB connection
12 key Preview & Program bus
12 overlay keys
Transition keys
Function buttons to fire triggers
4 DSK keys
T-bar that offers gentle resistance between transitions
