Videolink MegaMix 1624
Live, Post, IMAG, Motion Graphics, ISO recording, software development.
Powered by vMix, Wirecast or Livestream Studio
Configurable I/O: 4, 8, 12 or 16 Channel
HD-SDI, HDMI or HDMI 2.0 (4K)
Get the tools you need from Videolink!



Introducing the Videolink MegaMix 1624

Click on thumbnails for larger pictures

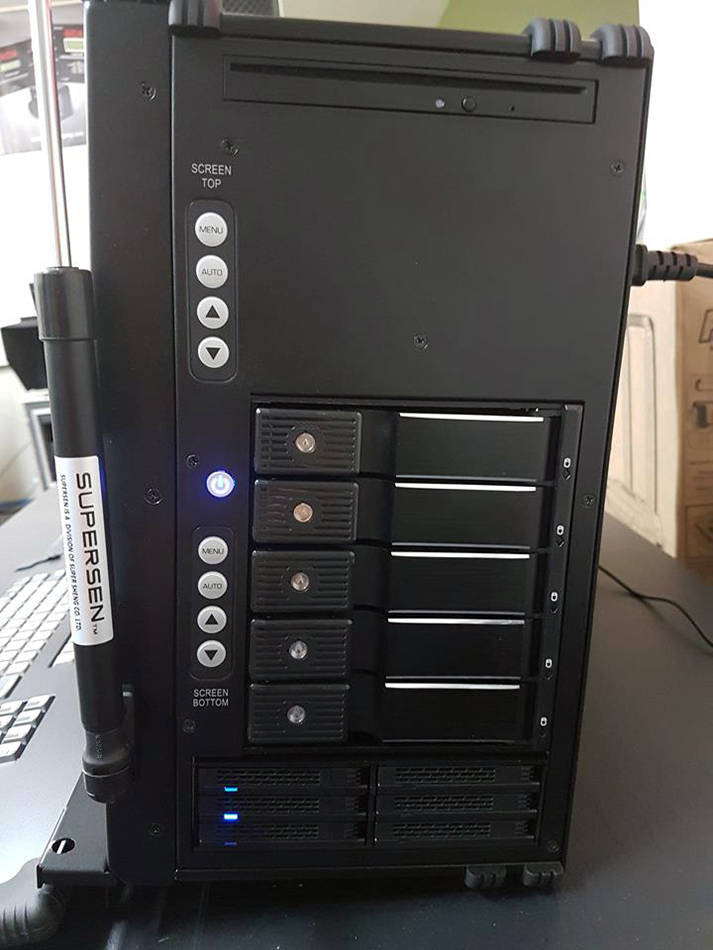

Videolink MegaMix Videolink MegaMix Powered by vMix
Videolink MegaMix Videolink MegaMix


back to top


Technical Specifications - MegaMix 1624 Portable Production System

Download MegaMix 1624 Specs Here





PART

DESCRIPTION

QTY
Chassis Material: Aluminum Alloy
Color: Black
Screens: 2 x 24" HD LED LCD, 1920x1080
Keyboard: Integrated Qwerty 105-keys with touchpad
Other: Padded soft carrying case w/ wheels		 1
System Board MSI X299 GAMING PRO CARBON AC LGA 2066 Intel X299
SATA 6Gb/s USB 3.1 ATX Intel Motherboard		 1
CPU Intel Core i9-7900X Skylake-X 10-Core 3.3 GHz LGA 2066 Processor 1
CPU Cooler High Performance Intel LGA 2066 Dynatron R30 1.5U Active CPU Coolers 1
Memory 64 GB (4 x 16G) 288-Pin DDR4 SDRAM DDR4 2666
(PC4 21300) Desktop Memory		 1
System Drive Crucial MX300 2.5" 525GB SATA III 3-D Vertical Internal Solid State Drive (SSD) CT525MX300SSD1 1
HDD Enclosure 6-Bay 2.5" SAS/SATA/SSD HDD Hot Swap Cage in single 5.25" Bay as well as 5-Bay 3.5" SATA HDD Hot Swap Cage
 1
Optical Drive Slot Loading Optical DVD+/-RW drive with 22X CDR, 8x DVD-ROM 1
Operating System Windows 10 64-bit PRO 1
Production/Streaming Software Can be used with vMix, Wirecast, Livestream Studio and/or any other live/post production software 1
Video Controller EVGA GeForce GTX 1080 SC GAMING ACX 3.0, 08G-P4- 6183-KR, 8GB GDDR5X 1
Sata Controller 4 Port PCI Express 2.0 SATA III 6Gbps RAID Controller
Card with HyperDuo SSD Tiering - PCIe SATA 3 Controller Adapter		 1
Expansion Slots PCI Express 3.0 x16: 4
PCI Express 3.0 x1: 2		 -
Rear I/O Plate Audio Chipset: Realtek ALC1220, 7.1 Channels LAN Chipset: Intel I219-V
Max LAN Speed: Dual 10/100/1000 Mbps PS2 Port: 1
USB 3.0: 6 USB 1.1/2.0: 3
Audio Ports: 5		 -

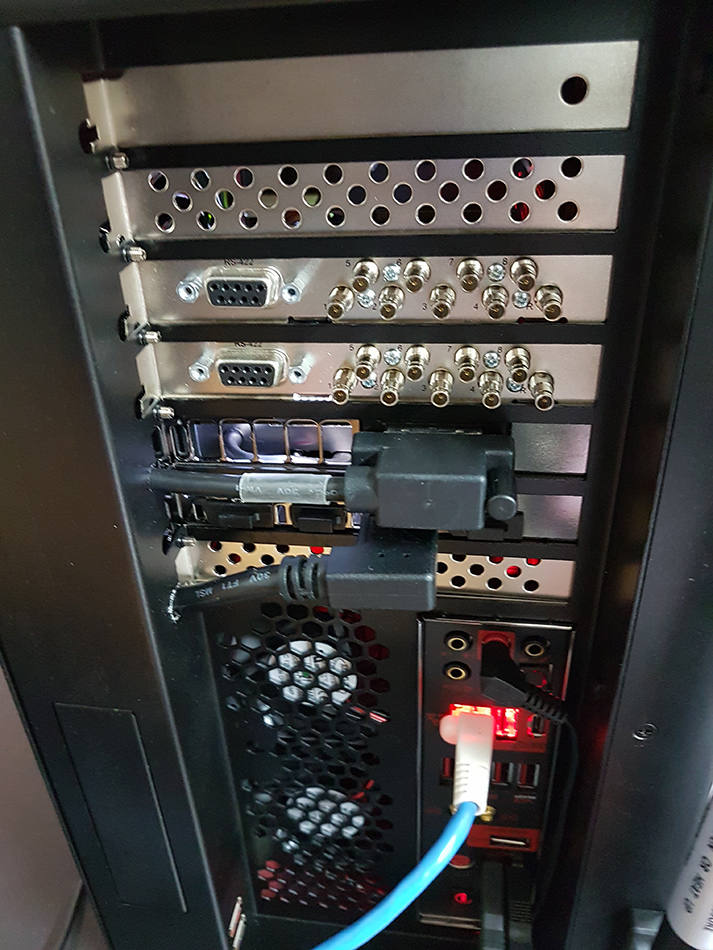

Capture Playback Device AJA Corvid 88 8-Channel 3G-SDI I/O Card (Low Profile) 8x SD/HD/3G-SDI I/O Connectors Supports SD, HD, 2K, UHD 4K, and DCI 4K - High Frame-Rate 50p and 60p or YUAN 4, 8, 12, 16, I/O - HD-SDI, HDMI, HDMI 2.0 (4K) 2
